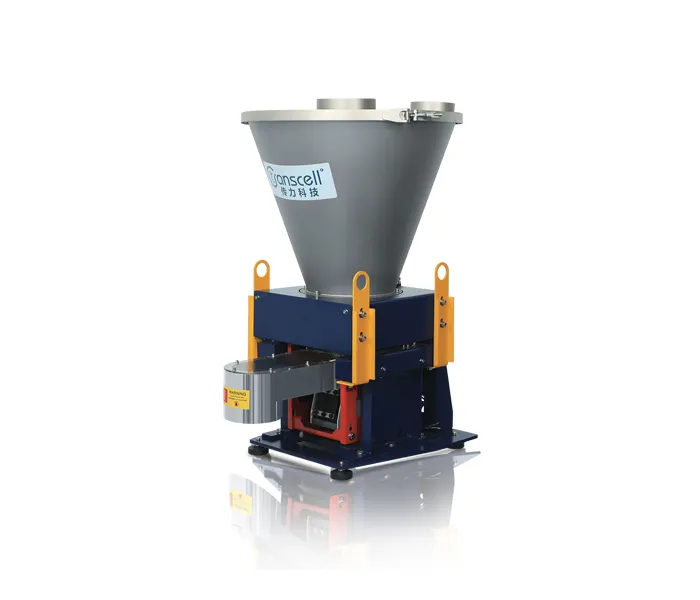

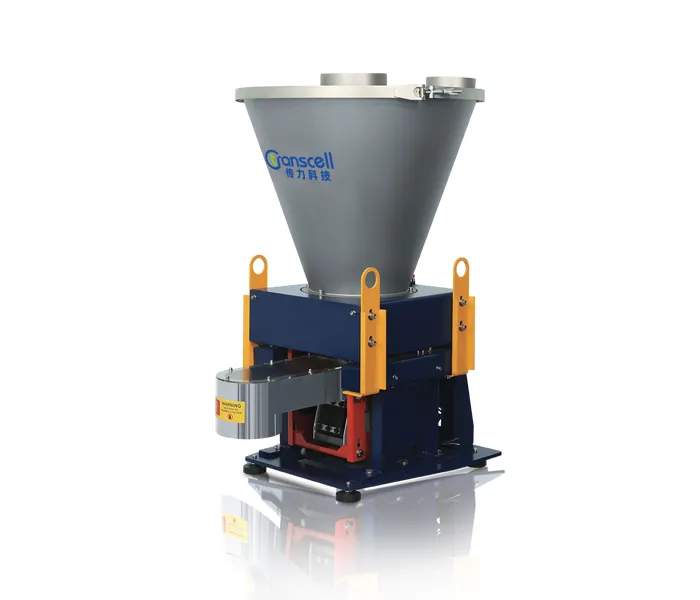

Vibrating Loss-In-Weight Feeder

The vibratory feeder is high-precision automated equipment integrating vibratory conveying technology with loss-in-weight dynamic metering. Driven by high-frequency, micro-amplitude vibration, this linear vibratory feeder is mainly suitable for irregularly shaped materials such as fibrous and crushed materials.

CONTACT TRANSCELL NOW Dry Cabinet PDF

Specifications of Vibrating Loss-In-Weight Feeder


Metering bin80L/120L
Collecting hopper5L
Hopper supportMaterial Q235-A
Discharge chute regulating portΦ168
High precision sensorFSSB-100kg*2
Linear vibratorHD-ZL150
Vibrating discharge chuteΦ102/Φ159
Materials in contact with the materialSS304
Environment temperature0-40℃
Material temperature0-50℃
Paint colorRAL 5003
The above are standard parameters; additional loss in weight feeder configurations can be specified according to the material characteristics and process requirements.
