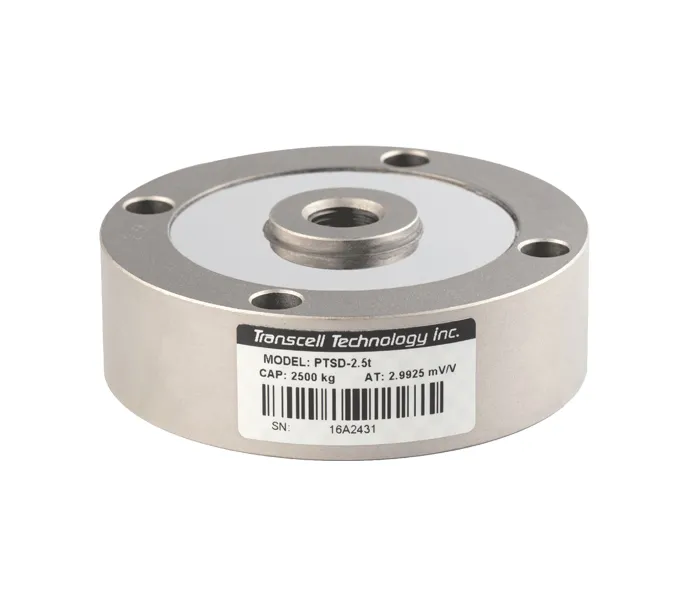

Wheel spoke sensor; High quality alloy steel material; high-precision; High stability; Low profile; Easy and fast installation; Surface nickel plating anti-corrosion treatment; Suitable for testing machines, truck scales, and large hopper scales, etc.
| Rated Output | 3.0mV/V ±0.25% |
| Zero Balance | ±1% of rated output |
| Creep after 30 minutes | ±0.03% of rated output |
| Nonlinearity | ±0.03% of rated output |
| Hysteresis | ±0.03% of rated output |
| Repeatability | ±0.03% of rated output |
| Temp. effect on output | ≤0.002% of applied output/°C |
| Temp. effect on zero | ≤0.002% of rated output/°C |
| Safe Temp. Range | -10°C to + 70°C |
| Temp. Compensated | -10°C to + 40°C |
| Safe Overload | 150% |
| Input Impedance | 775 ohm ± 20 ohm |
| Output Impedance | 700 ohm ± 5 ohm |
| Insulation Resistance | ≥5000 M ohm (50V DC) |
| Rated Excitation | 10V DC/AC |
| Maximum Excitation | 15V DC/AC |
| Cable Length | 600cm/1000cm |
| Cable Color Code | Red(+E) Black(-E) Green(+S) White(-S) |
