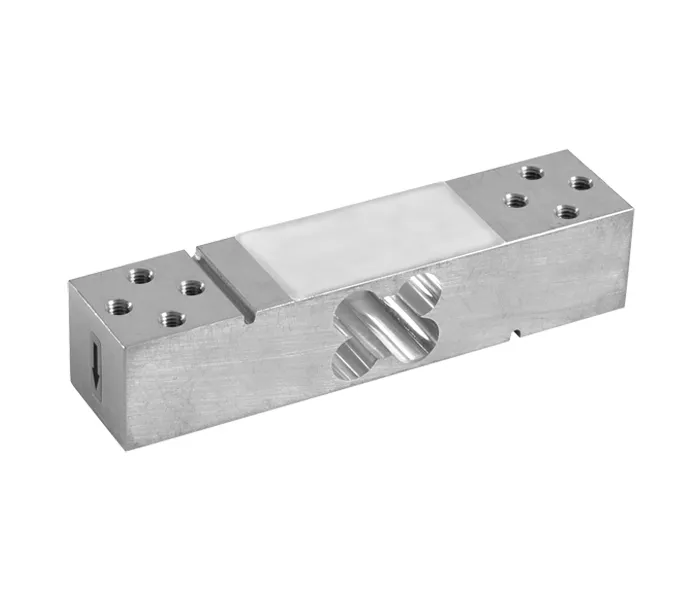

FATS Single Point Load Cell

Single point: Made of high-quality aluminum alloy material; high-precision; High stability; Easy and fast installation; Suitable for postage scales, packaging scales, small hopper scales, platform scales, etc. Product features and advantages.

fats single point load cell for sale
CONTACT TRANSCELL NOW

Specifications of FATS Single Point Load Cell


Rated Output2.0mV/V ±10%
Zero Balance±3% of rated output
Creep after 30 minutes±0.02% of rated output
Nonlinearity±0.02% of rated output
Hysteresis±0.02% of rated output
Repeatability±0.02% of rated output
Temp. effect on output≤0.002% of applied output/°C
Temp. effect on zero≤0.002% of rated output/°C
Safe Temp. Range-10°C to + 70°C
Temp. Compensated-10°C to + 40°C
Safe Overload150%
Input Impedance410 ohm ± 20 ohm
Output Impedance350 ohm ± 5 ohm
Insulation Resistance≥5000 M ohm (50V DC)
Rated Excitation10V DC/AC
Maximum Excitation15V DC/AC
Cable Length45m
Cable Color CodeRed(+E) Black(-E) Green(+S) White(-S)
